Original Jewel Case

General Information

  1. Production Name
    Original Jewel Case ®
  2. Application
    This standard specifies the physical dimensions of Original Jewel Case ® produced by CMC Magnetics Corporation Taiwan.
  3. Shipping Quality
    The product must pass inspection criteria.
  4. Packaging Specification
    The product shall be packed by the way of “Packing Specification”.

Product Specification of CMC DVD Box®

  1. Jewel Case Assembly
    a. Finished Product Inspection Criteria for Jewel Case Assembly
    b. Specification of Jewel Case Assembly
  2. Jewel Case Lid
    a. Finished Product Inspection Criteria for Jewel Case Lid
    b. Specification of Jewel Case Lid
  3. Jewel Case Bottom
    a. Finished Product Inspection Criteria for Jewel Case Bottom
    b. Specification of Jewel Case Bottom
  4. Standard Jewel Tray
    a. Finished Product Inspection Criteria for Jewel Tray
    b. Specification of Jewel Tray
  5. Clear Jewel Tray
    a. Finished Product Inspection Criteria for Jewel Tray
    b. Specification of Jewel Tray
  6. Packaging Specification

Finished Product Inspection Criteria

Jewel Case Assembly

Item

Specification

Tools

A 142.20 ~ 142.50 mm Caliper
B 124.60 ~ 124.90 mm Caliper
C 10.40 ± 0.2 mm Caliper
Tab 2.40 ± 0.1 mm Block Gauge
Flash Gate May not rise above lip Ruler
Short Shot None allowed Visual
Warpage Positive May not be over lip Ruler
Warpage Negative < 1.70 mm Thickness Gauge
Opening Lid 100 - 300 gms Tension Gauge

  Back to Top
Jewel Case Lid

Item

Specification

Tools

A 142.20 ~ 142.50 mm Caliper
B , C 124.60 ~ 124.90 mm Caliper
D , E 121.50 ~ 121.90 mm Caliper
F No Protrusion Visual
Tab 2.40 ± 0.1 mm Block Gauge
Flash Gate May not rise above lip Ruler
Short Shot None allowed Visual
Warpage Positive May not be over lip Ruler
Warpage Negative < 0.70 mm Thickness Gauge

  Back to Top

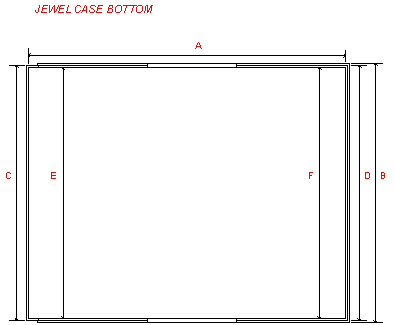

Jewel Case Bottom

Item

Specification

Tools

A 142.20 ~ 142.5 0 mm Caliper
B 124.50 ~ 124.80 mm Caliper
C.D 121.20 ~ 121.80 mm Caliper
E 118.30 ~ 118.90 mm Caliper
Flash Gate May not rise above lip Ruler
Short Shot None allowed Visual
Warpage Positive May not be over lip Ruler
warpage Negative < 0.70 mm Thickness Gauge

  Back to Top
Standard Jewel Tray

Item

Specification

Tools

A 139.90 ~ 140.10 mm Caliper
B 118.20 ~ 118.60 mm Caliper
C 121.20 ~ 121.60 mm Caliper
I Æ 15.20 ~ Æ 15.40 mm Caliper
K 119.40 ± 0.2 40 Caliper
Color Match Match to limited sample Visual
Short Shot None allowed Visual
Crack None allowed Visual
warpage < 0.70 mm Laser Beam Thickness Gauge

  Back to Top
Clear Jewel Tray

Item

Specification

Tools

A 139.90 ~ 140.10 mm Caliper
B 118.20 ~ 118.60 mm Caliper
C 121.20 ~ 121.60 mm Caliper
I Æ 15.20 ~ Æ 15.40 mm Caliper
K 119.40 ± 0.2 40 Caliper
Color Match Match to limited sample Visual
Short Shot None allowed Visual
Crack None allowed Visual
warpage < 0.70 mm Laser Beam Thickness Gauge

  Back to Top

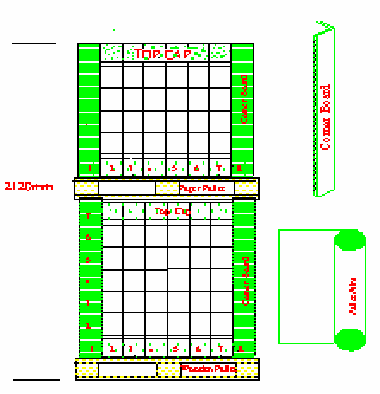

Packaging Specification - Palletizing (Taiwan)
CD Jewel Cases per bundle 50
CD Jewel Tray per bundle 100
CD Jewel Case per pallet 10,400 (4,800 upper / 5,600 lower)
CD Jewel Tray per pallet 25,200 (12,600 upper / 12,600 lower)
Dimensions of Case pallet L1020 × W1130 × H114 mm
Dimensions of Tray pallet L890 × W1130 × H114 mm
Cases weight pallet (cases + wooden + paper pallet) Approx. 466 kg
Trays weight pallet (trays + wooden + paper pallet) Approx. 428 kg
Pallet per 40 ft container 34 pallets cases / 14 pallets tray
Sets per 40 ft container 176,400
